Vestax VAI-80 TANK (d)
 |
 |
 |
 |
|
|||||||||||||
PRODUCT DESCRIPTION:

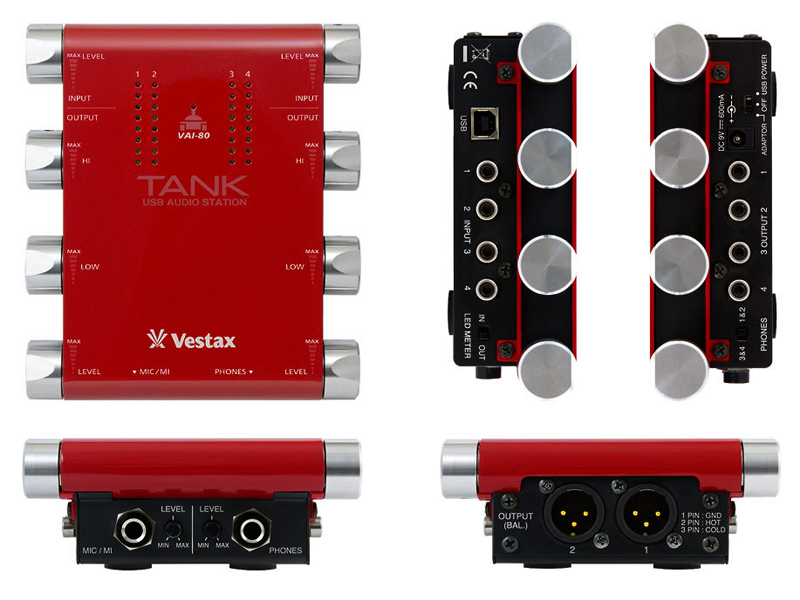

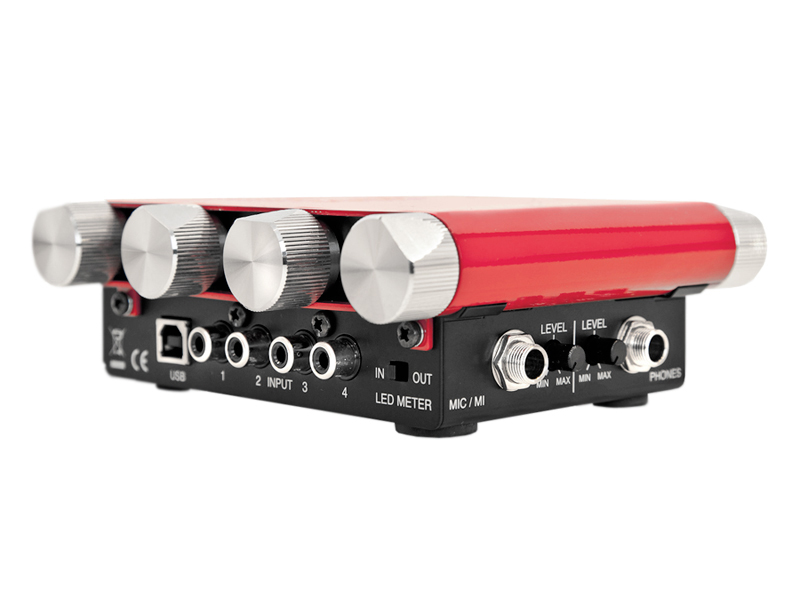

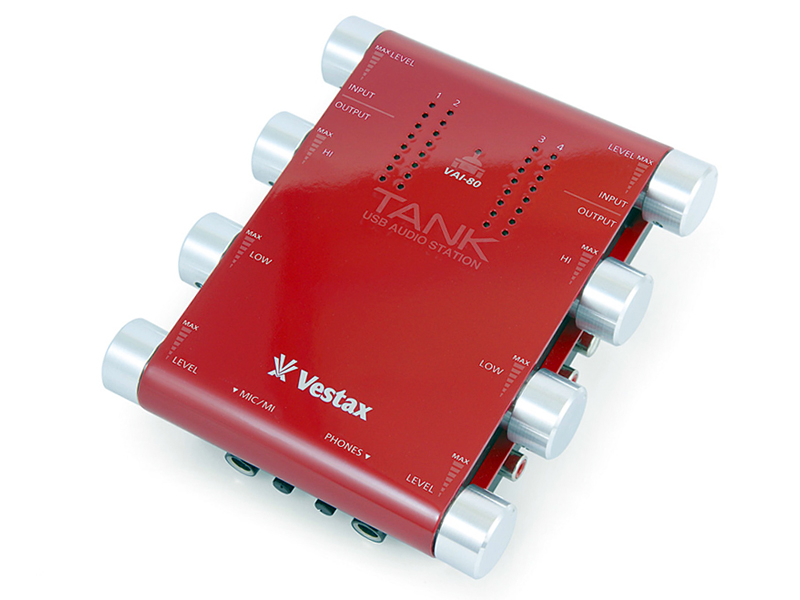

Advantageous only for collectors! VAI-80 TANK CE (collectors edition) is a compact stylish USB sound card whose design and operation have been developed to be as simple and efficient as possible. Thanks to the all-metal design, this sound card is really durable, but thanks to its small size it is also easy to carry. Multichannel recording and playback will be welcomed by more demanding users. The sound card was designed primarily for use in mobile DJ. view full description »

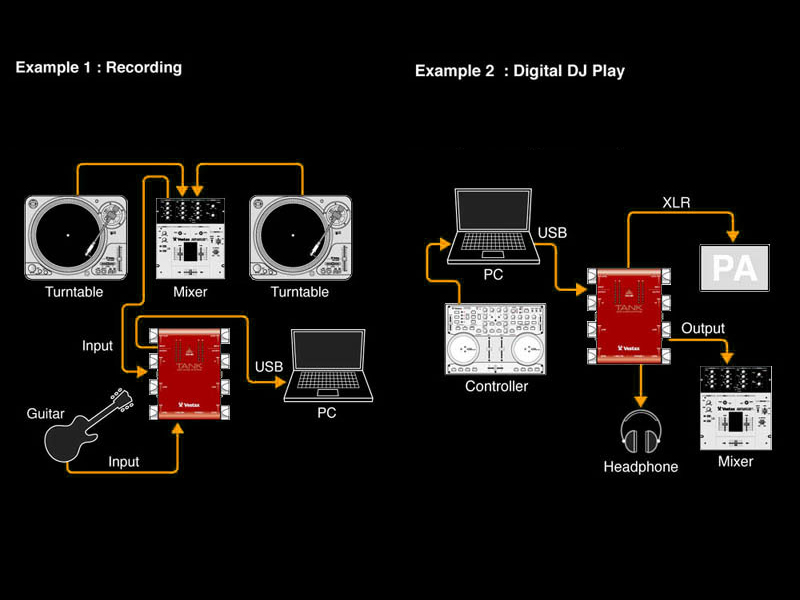

Each of the input channels (2x stereo / 4x mono) has its own input signal level setting (Gain) and dual band frequency correction (EQ ± 16 dB), which allows flexible sound card settings for live recording and can help DJs focus on their own production and not monitor parameters of recording software. Eight segment LED bar indicators are used to visually check the signal level. You can select the monitoring output (CH 1-2 or CH 3-4), and a headset and microphone can be connected to the sound card via the TRS 6.3 connectors. Using the balanced XLR outputs it is possible to connect the VAI-80 sound card to a PA system, for example in a music club. High quality audio signal thanks to 16bit / 44.1kHz AD / DA converters (CD audio quality) will satisfy even more demanding DJs and is suitable for users of DAW application software. Although the sound card does not require any additional power, it can only work with power from a computer USB port (USB spec. Vers. 1.1, USB audio class spec. Vers. 1.0), but it can of course be connected to an external power adapter. For its unconventional design and durable design, the VAI-80 USB sound card was given the nickname "TANK".
KEY FEATURES:

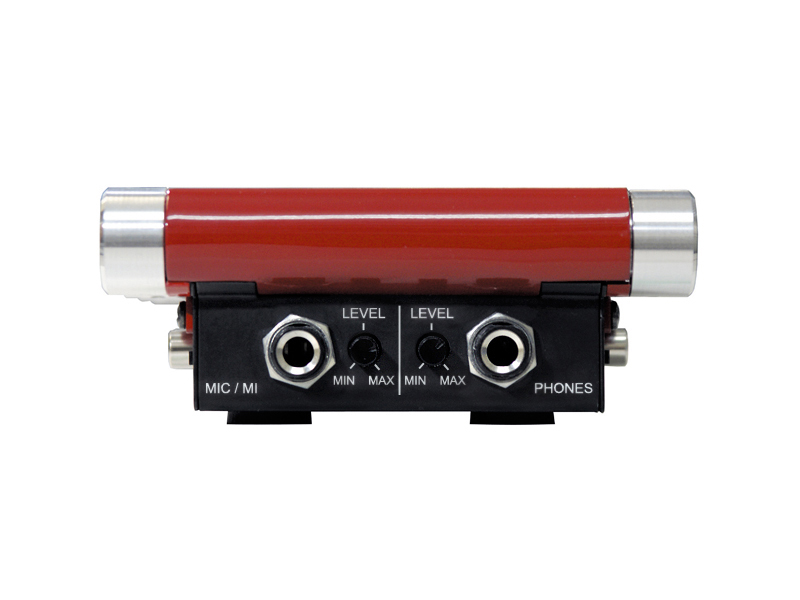

- 4 unbalanced inputs (RCA) and unbalanced microphone input (TRS 6.3)
- optional headphone or speakers output (CH 1-2 / CH 3-4) connectors
- AD/DA converters 16bit/44,1kHz, 103 - 106 dBA, 20 Hz ～ 20 kHz
- bar LED indicators for monitoring the input / output signal
- dual-band frequency corrections (Hi, Low) ±16 dB
- robust, durable metal chassis construction

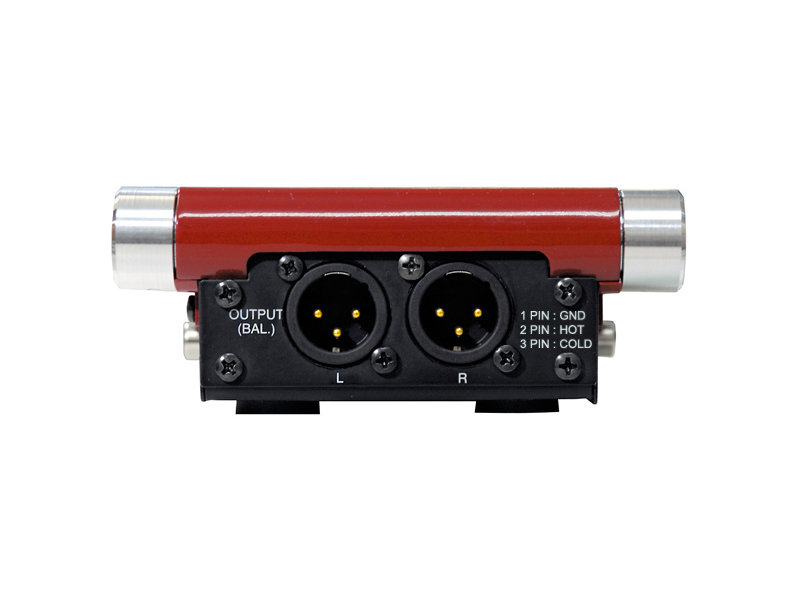

- two balanced XLR outputs
- interface USB 1.0
TECHNICAL PARAMETERS:

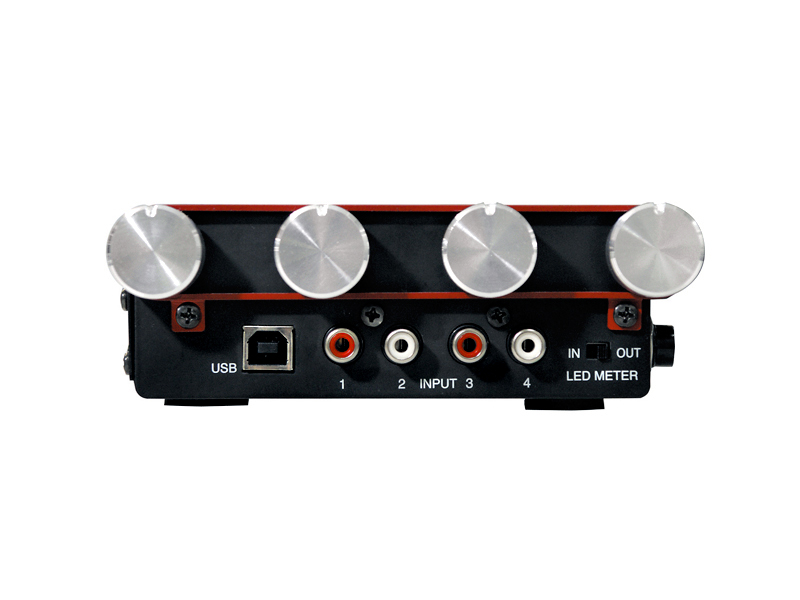

| Inputs | 4x LINE mono (RCA) unbalanced -10 dBV / 10 kΩ 1x MIC (TRS 6,3) unbalanced |

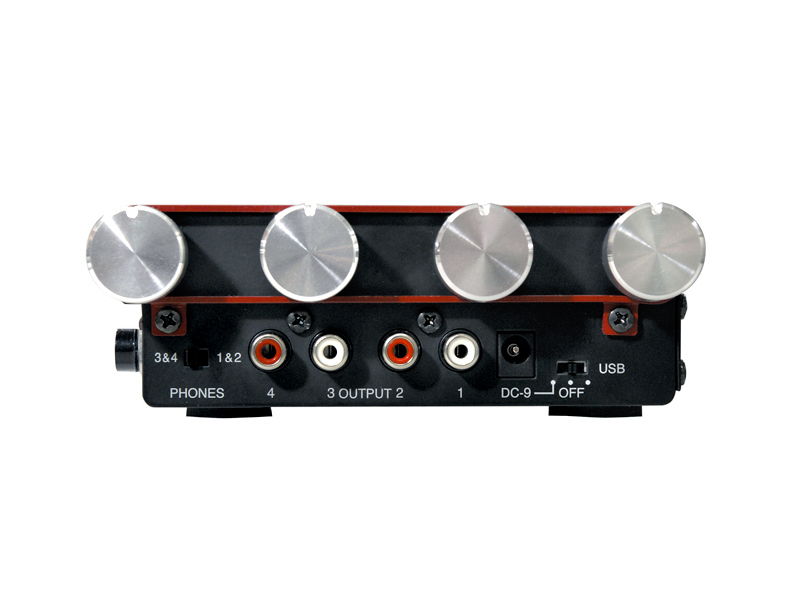

| Outputs | 4x LINE mono (RCA) unbalanced -10 dBV / 100 Ω 1x MASTER stereo (XLR) balanced 1x HEADPHONES (TRS 6,3) |
| Converters | AD/DA 16bit/44,1kHz, 103-106 dBA, 20 Hz ～ 20 kHz |
| Interface | USB 1.0 |
| Power supply | 9 V (600 mA) / USB / DC-9 adaptor |
| Drivers | ASIO4ALL (Windows), CoreAudio (Mac OS X) |
| Dimension | 121 x 47 x 140 mm |
| Weight | 0,6 kg |
| Accessories | USB cable, install CD-ROM (AISO drivers) |
MINIMUM COMPUTER SPECIFICATIONS:
| MAC | WINDOWS | |
| Operation system | Mac OS X 10.5+ | Win7 (SP1, 32bit / 64bit) Vista (SP1, 32bit / 64bit) XP (SP2, jen 32bit) |
| Procesor | G4 | Intel Pentium lll 450MHz |
| RAM | 512MB | 512MB |
| USB port | 1.0 | 1.0 |
| Other | — | — |
| These are the minimum requirements for a computer connected to the device described. For best results and professional use, the manufacturer always recommends using a higher computer specification than shown here. | ||
