Vestax TRS 6.3-05 TERMINAL

PRODUCT DESCRIPT:

Original Vestax Japan spare part - single input TRS terminal (Jack 6.3 connector nest / STEREO) or single input TS terminal (Jack 6.3 connector nest / MONO) for Vestax mixers PMC-05Pro Series, PMC-06Pro Series or similar PMC / PCV Series mixers for soldering to PCB board. It is available in three different designs, depending on the applicationIt is available in three different designs, depending on the application (use - fitting in the mixers). These are original Vestax spare parts that are not interchangeable with similar parts from other manufacturers! Changing the TRS terminal is not user-friendly, if you are unsure, have it replaced by an authorized service center or by experienced qualified person.

Tip: If you are unsure, please consult our customer support before purchasing.

KEY FEATURES:

single entry TS terminal (Jack 6,3 connector 2P pole / MONO) for audio inputs / outputs (AUX, SND, RTN, MASTER)

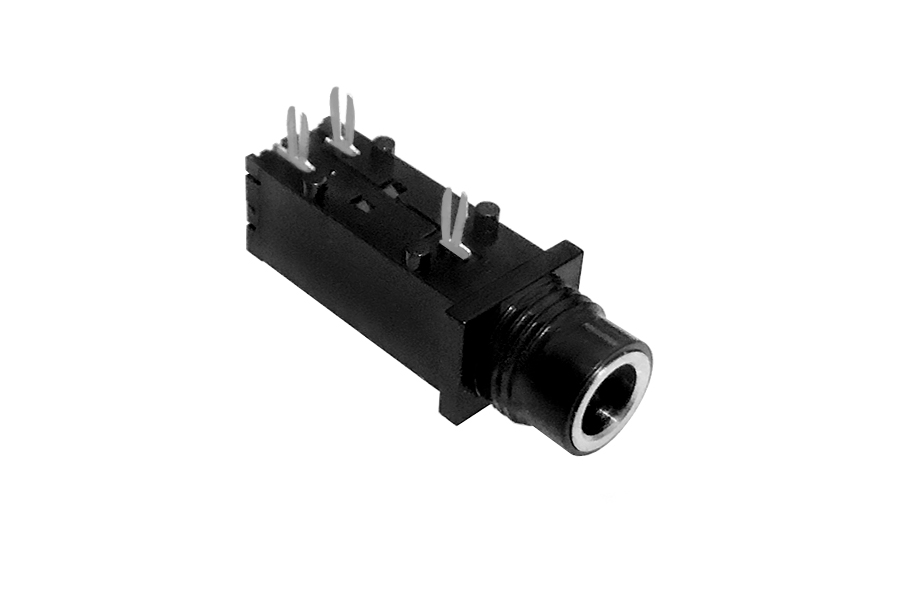

single entry TRS terminal (Jack 6,3 connector 3P pole / STEREO) for audio headphones outputs (HP)

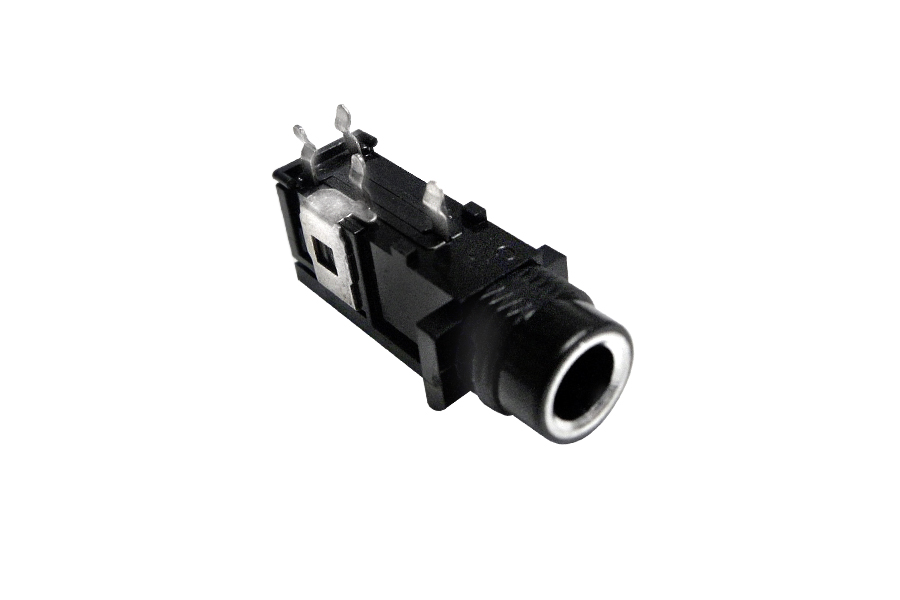

single entry TS terminal (Jack 6,3 connector 2P pole / MONO) for audio inputs (MIC, SUB MIC)

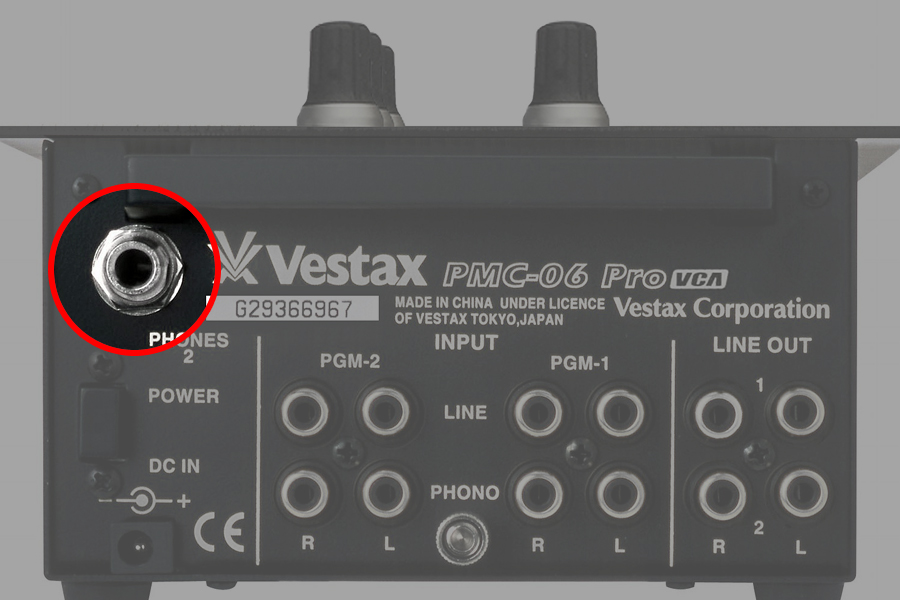

version TRS 6.3-05T3 HP ...for PMC-05Pro3, PMC-05SL, PMC-06 Series (HEADPHONES 1/4" output)
version TRS 6.3-05T2 HP ...for PMC-05Pro2 Series (HEADPHONES 1/4" output)
version TS 6.3-05T MIC ...for PMC-05Pro2, PMC-05Pro3, PMC-05SL (MIC input)

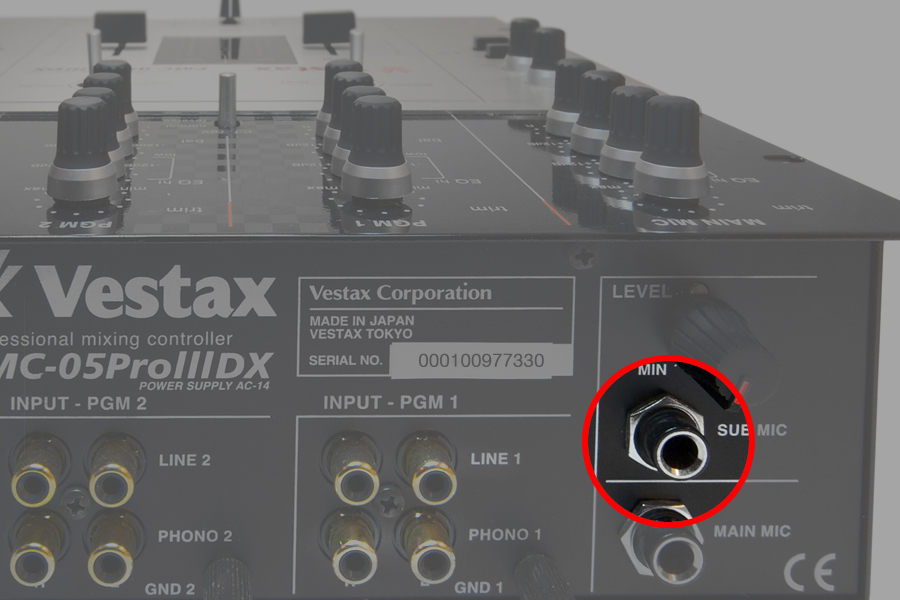

version TS 6.3-05T MIC ...for PMC-05Pro3 DX (SUB MIC, MAIN MIC inputs)
for mounting on PCB board as input or output field
used mainly for authorized repair service
original Vestax Japan spare part

DOWNLOAD:

Table of general spare parts & accessories Vestax (349 kB)
Table of compatibility CF, IF, PF, RF Vestax (1,85 MB)

PHOTOGALERY:

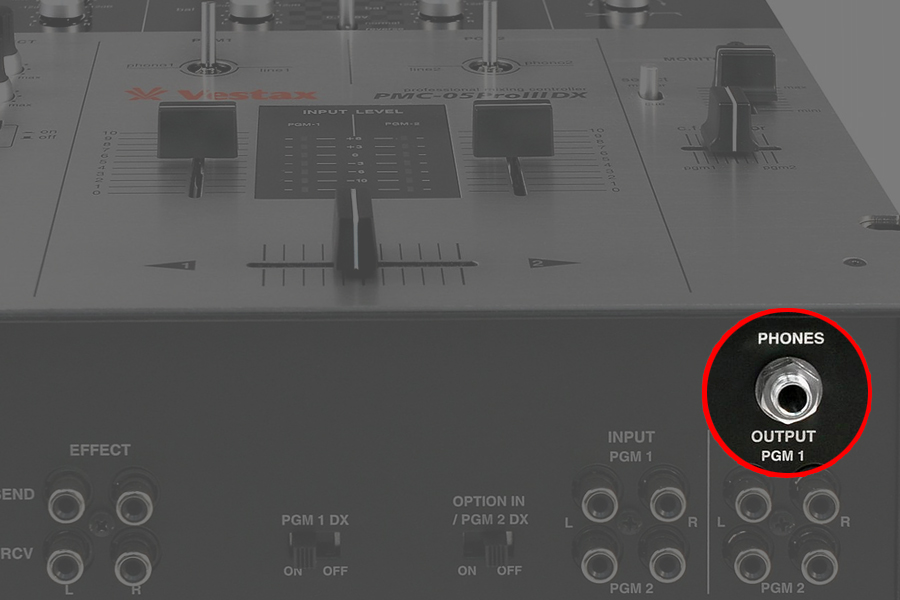

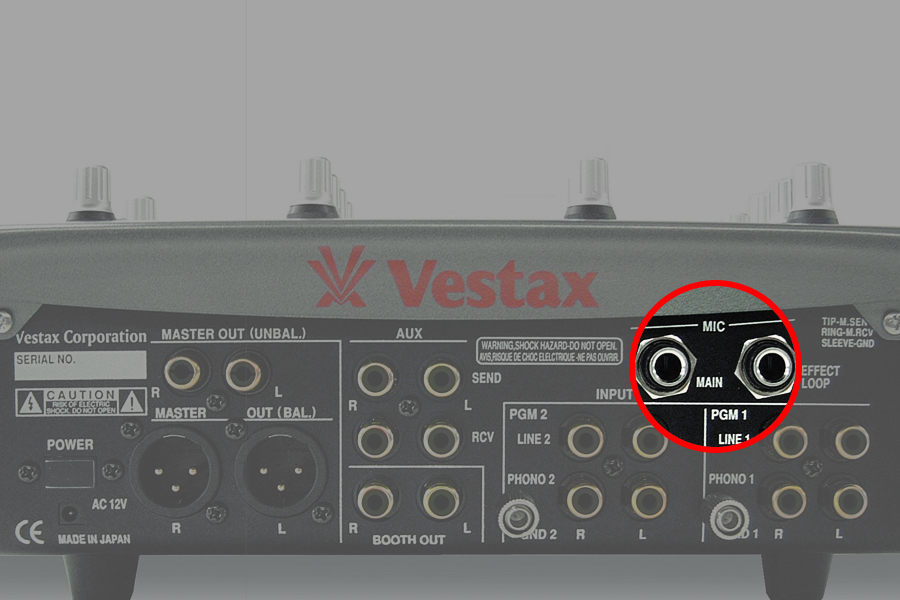

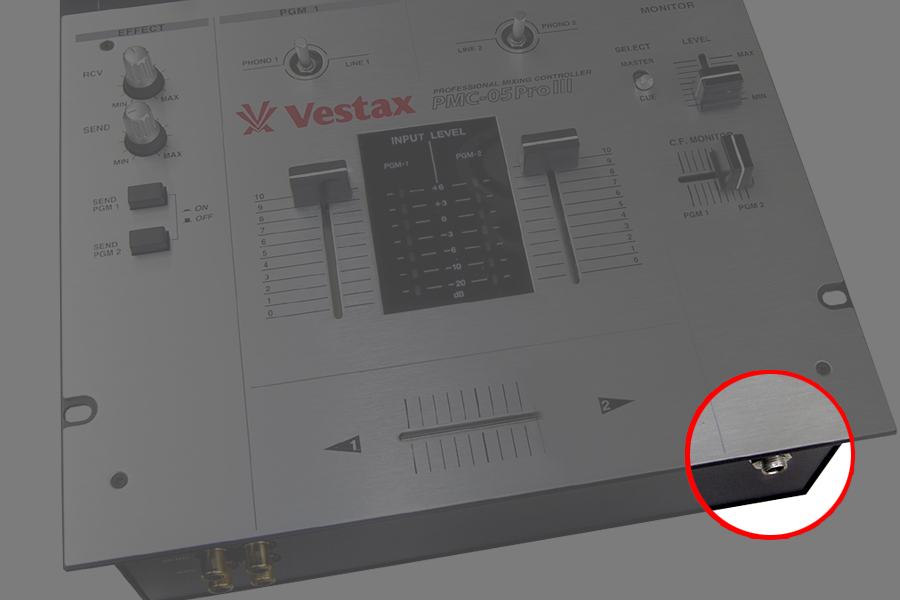

Vestax TRS 6.3-05T (application example)

Currency Converter

You will immediately find out - how much you will pay. Enter the amount of the product price in the USD / EUR - $ / € field and you will get the conversion to your local currency. This services provided by FreeCurrencyRates.com.

FreeCurrencyRates.com

Add comment

Name:
E-mail:
Title:
Message :
Security question :	Second most large city in Japan?

The highlighted fields are mandatory.

Comments - Overview

Headphone jack (Tyler Adams, 8 Nov 2024 22:02:49) Reply | Show replies
Will this also work in a PMC-25 mixer? The top of the Mic and Headphone jack broke off, they still work fine but i'd like to replace them and restore the mixers beauty. I took mine apart and they look like they'll work but figured I'd ask just in case.

Re: Headphone jack (Vestax TECH SUPPORT, 9 Nov 2024 08:48:02) Reply
Hello, yes, this variant 6.3-05T HP applies to PMC-25 / additional part code HLJ-0546-01-010 must be specified in the order note. The Vestax PMC-25 is an amazing mixing console. Using the code "BF2024" you will get a 20% discount as part of Black Friday.
