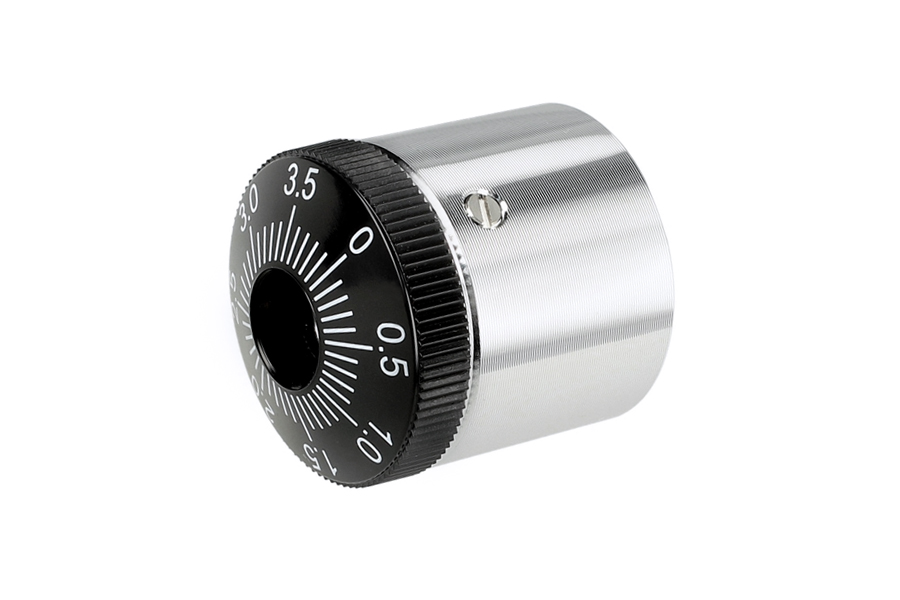

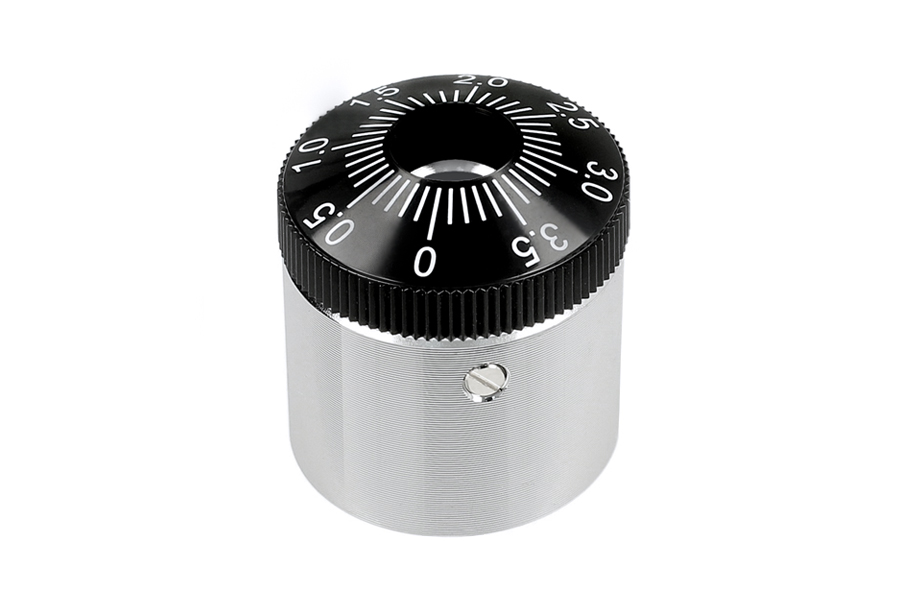

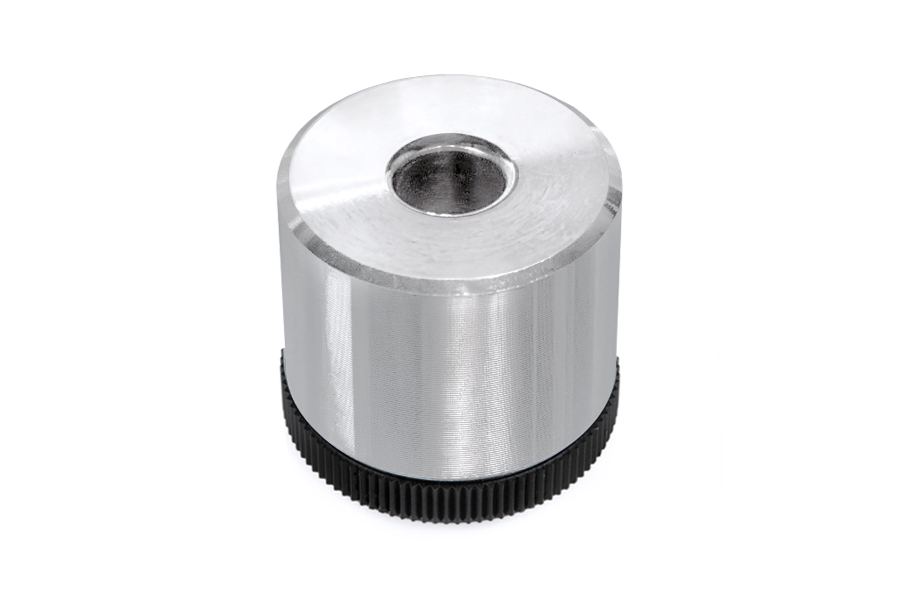

Audiotechnica CW-1 (d)

For Audiotechnica or Technics Series turntables designed model heavy counterweight AT-CW1 (replacement weight) whitch is designed to balance the arm of the dial with the locking ring in black.

Code: B00PQNEW9Q

€ 38.17 € 44.90

15%

Availability: sold out

Currency Rates Today 1 $ CZK 1 € CZK

PRODUCT DESCRIPTION:

For Audiotechnica Series turntables is designed upgrade heavy tonearm counterweight AT-CW1. Heavy counter weight enables the AT-LP120 and AT-LP120 USB turntables to use higher quality headshells and cartridges which usually are beyond the usable range of the standard counterweight supplied with the AT-LP120 turntables. Is designed to the balance of the tone arm, with a rotating ring with scale to precision adjust the pressure on the stylus. Example, enables AT-LP120 and AT-LP120 USB turntables to use higher quality headshells and cartridges. Low limit: 13g combined weight of headshell, headshell wires, screws and nuts, and cartridge. High limit: 18g combined weight of headshell, headshell wires, screws and nuts, and cartridge. The AT-CW1 is actually a more suitable counterweight for the factory installed AT headshell and AT95E cartridge that are provided with the AT-LP120USB turntables. It sits closer to the pivot point of the tonearm for better tracking and performance.



KEY FEATURES:

• replaceable counterweight with detent rotating ring with scale to adjust the pressure on the stylus
• enables AT-LP120 & AT-LP120 USB turntables to use higher quality headshells and cartridges
• enhances performance of original Audiotechnica factory set-up with ATP-2 or AT95E cartridge
• original Audiotechnica Japan part made of high quality binary brass, anodized chrome finish
• high limit 18g combined weight of headshell, headshell wires, screws, nuts and cartridge

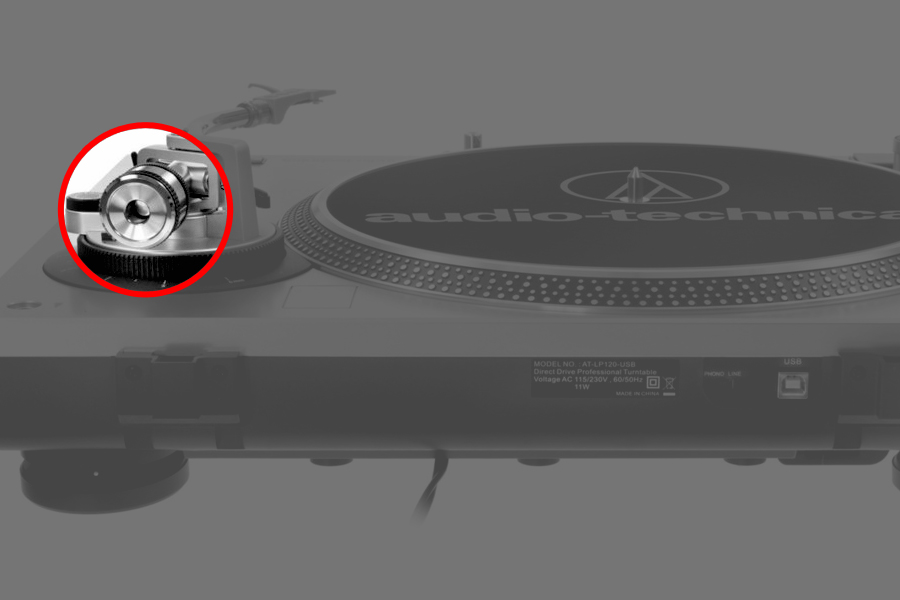

• sits closer to the pivot point of the tonearm for better tracking and performance
• comfortable setting the balance of the tone arm
• simple & quickly user installation



TECHNICAL PARAMETERS:

Specification	Audiotechnica AT-LP120 and AT-LP120 USB
Design	high quality binary brass, chrome finish, locking screw
Dimension	Ø 30,0 x 33 mm / Ø 10,6 mm (inner diameter)
Weight	136 g (netto)
Accessories	instructions to balance the stylus



DOWNLOAD:

Vestax original parts - manual (0 kB)



PHOTOGALERY:
